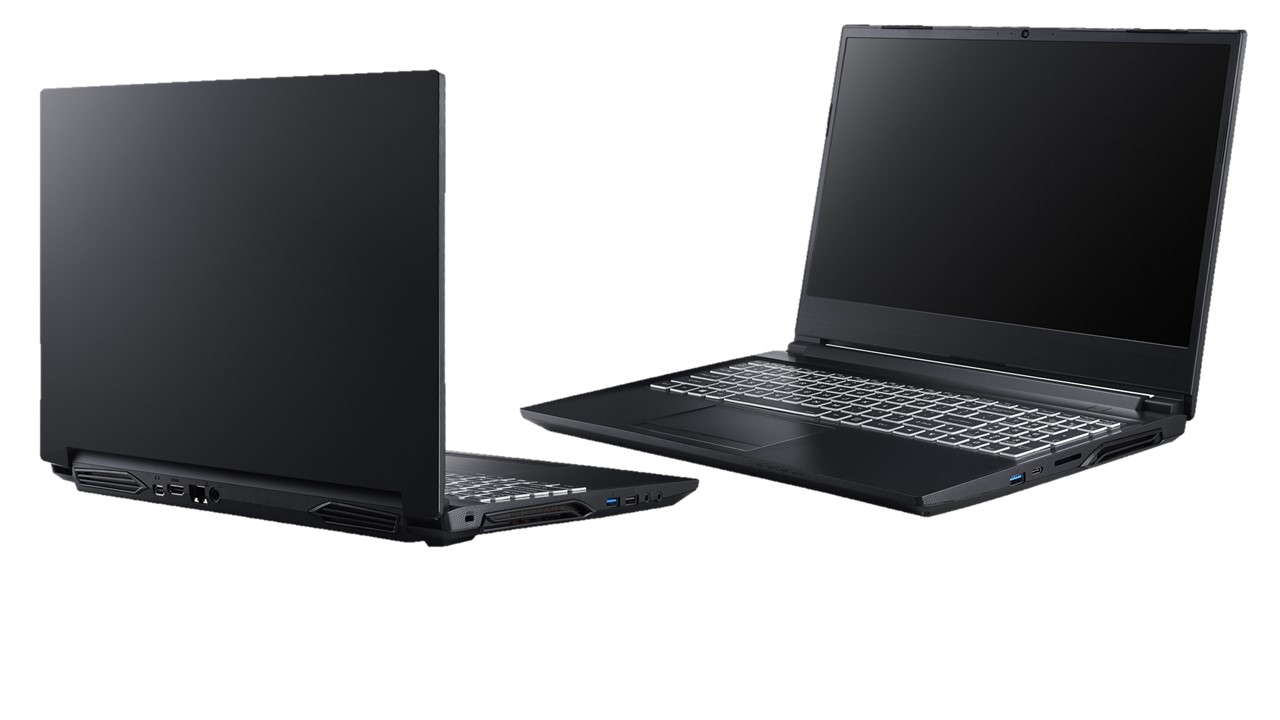

EWIS X1590UD
EWIS X1590UD
Gamming Laptop Series
EWIS X1590UD
- 15.6” FHD Display 1920 x 1080
- Intel Core i7-10750H Processor (12M Cache, up to 5.00 GHz)
- NVIDIA GeForce GTX 1650 - 4GB
- 8GB DDR4 Memory upto 32GB
- 500GB 2.5" HDD upto 1TB
- 256GB M.2 SATA Storage Upto 1TB - Optional
- 256GB M.2 NVMe Storage Upto 1TB - Optional
- Intel® Wi-Fi 6 AX201 (2x2) Wi-Fi + Bluetooth
- 41WH - Lithium-Ion battery
- Windows 10 Home (Ewis recommends Windows 10 Pro for business)
- 1/2/3 years comprehensive on-site warranty.
Model : EWIS X1590UD
Processor : Intel® Comet Lake Core® i7 10750H 2.6GHz 12MB Cache
Chipset : HM470
Memory : 4GB / 8GB / 16GB / 32GB DDR4 2666 (2 x SO DIMM, Upgradability up to 32GB)
Integrated Graphics: Intel® UHD Graphics / HDR Support / Microsoft DirectX 12 compatible
Dedicated GPU : 4GB GDDR6 NVIDIA GeForce GTX 1650
Display : 15.6” LED Backlight FHD (1920 x 1080) 16:9 Widescreen panel
Camera : HD / 1.0MP Video Camera
Storage : M.2 SATA 128GB / 256GB / 512GB / 1TB (Optional)
M.2 NVMe 128GB / 256GB / 512GB / 1TB (Optional)
HDD, SATA 500GB / 1TB (2.5” 7mm, 5400rpm)
Communication : LAN 10/100/1000 Mbps
Wireless Module : Intel Dual Band Wi-Fi 6 AX201 2x2 802.11AX + Bluetooth 5.1
Keyboard : US full size Keyboard layout with spill resistant
Backlit keyboard with numeric pad (option)
Pointing Device : Built in touch pad with Microsoft PTP multi gesture & Scrolling function
Audio : High-Definition Audio
Microphone : Built in Array microphone

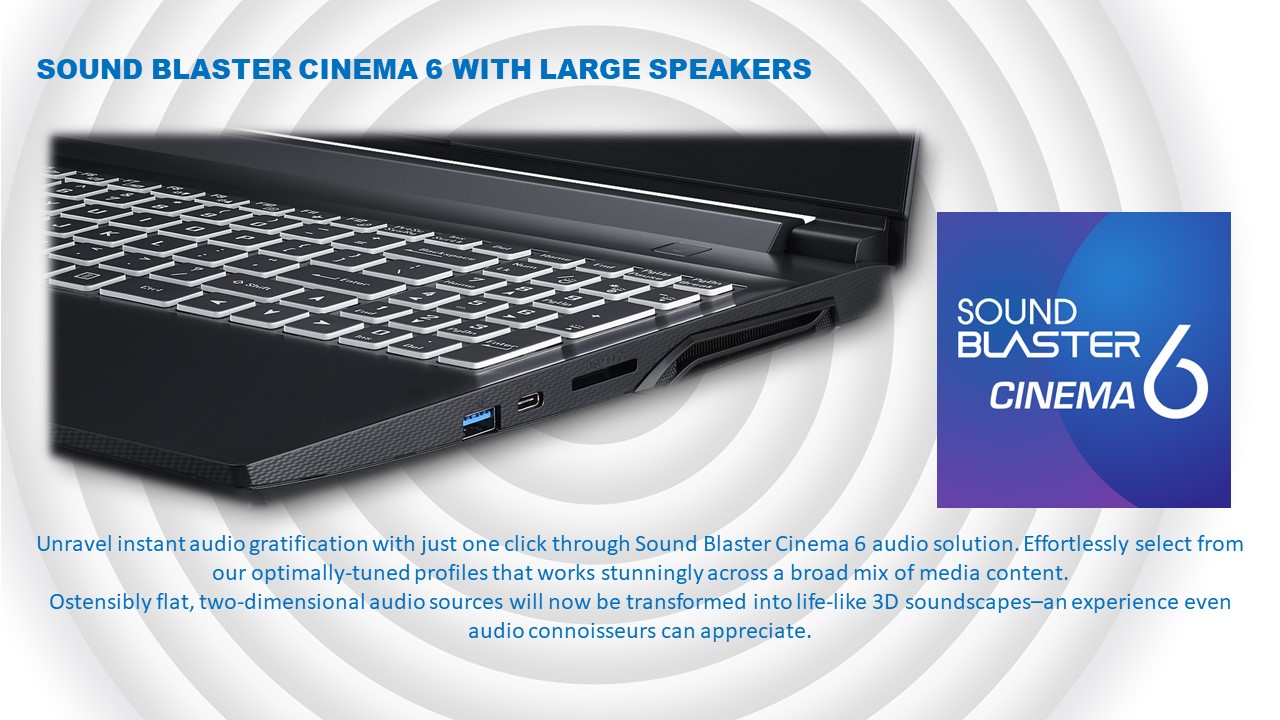

Speaker : Built in two Speakers / Sound Blaster Cinema 6
Operating System: Windows 10 Home
Windows 10 Professional 64bit - OEM (Optional)
Ubuntu 20.04
Card Reader : 6 in 1 Card Reader (MMC / RSMMC / SD / mini SD / SDHC / SDXC)
1 x USB 2.0 port (Type A)
1 x USB 3.2 Gen 1 Port (Type A)
1 x USB 3.2 Gen 2 Port (Type A)
1 x USB 3.2 Gen 2 Port (Type C)
1 x Mini Display 1.4 port
1 x HDMI Output port (With HDCP)
1 x 2 in 1 Audio jack (Headphone / Microphone)
1 x Microphone Jack
1 x RJ45 LAN Port
1 x DC in Jack
Power Adapter : Input 100 – 240V AC, 50-60Hz / DC output 19.5V, 6.15A 120W
Battery : Removable 4 Cells Smart Lithium-Ion battery pack, 41WH
Security : Kensington lock slot
Intel PTT for system without Hardware TPM
TPM 2.0 (Optional)
Accessories : Power Adapter
Carrying Case
Mouse pad
User Manual
Driver DVD
Recovery media kit (Optional
Dimension : W 361 x D 258 x H 24.9mm
Weight : 2.4Kg
Certification : CE, RoHS, FCC
Warranty : 1 Year / 3 Years / 5 Years (Optional)
Note : Please note that USB 3.0, USB 3.1 Gen1, and USB 3.2 Gen1 are in fact the same specification and feature the same exact performance capabilities. The USB Implementers Forum (USB-IF) recently rebranded USB 3.1 Gen1 to USB 3.2 Gen1. For more information about the change, please visit the USB-IF website at www.usb.org.
